Troubleshooting I Insufficient UV Coating Curing

The challenge of insufficient UV curing

Insufficient curing of UV coatings is the cause of many complaints within the graphic arts industry. Missing scuff resistance, blocking of sheets in the pile or odour problems are only some examples that may influence the quality of your printed products. Additionally, there is the danger of migration. Migration can be the result of an insufficient cross-linkage of the coating layer. If the necessary curing level is not reached, photoinitiators remain uncured which may lead to migration.

Solving insufficient UV curing

S​​​​​tep by Step

1. Pay attention to your UV lamps and reflectors

UV lamps and reflectors are important elements within your production process. Use the appropriate lamps. The energy need of inks and coating must be covered. Regularly check the performance of your lamps and reflectors. Clean them efficiently and in regular intervals or change them if necessary. Adapt radiation and wave length to each other and check the distance between UV lamp and substrate surface.

2. Reduce the speed of your printing press

The performance of your printing press and especially the combination of press speed and lamp performance represent important production parameters. In general: High ink and coating coverage needs more energy than low ink and coating coverage. Pay attention to a sufficiently long curing distance.

3. Use a coating alternative

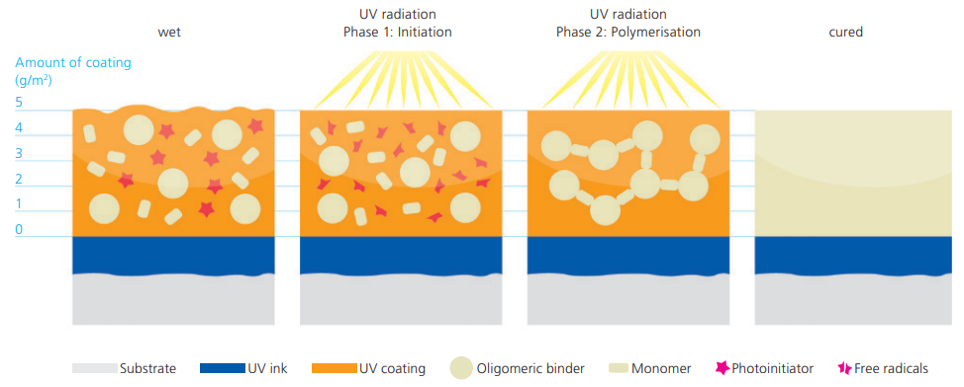

UV coatings are characterised by different reactivity. The more reactive a coating, the faster it is cross-linked. Here, photoinitiators are the reaction trigger. Please contact our Technical Services for a consultation.

4. Consider your substrate

Using UV equipment, i.e. UV inks and UV coatings, you may face the following risk: The coating may penetrate into the substrate on unprinted areas or areas with a low ink coverage. There, the coating can only cure insufficiently. This problem may especially appear using absorbant substrates. Thus, apply high-value board with surface characteristics that only show a low penetration potential.

5. Check your UV curing

There are various possibilities, i.e. analysis methods, of controlling the curing level. Generally, we distinguish between subjective methods and objective methods. A subjective method that can be done directly at the printing press refers to the fingernail test. Here, the coating’s curing is evaluated by means of visual impression after scratching the surface with a fingernail. The acetone test provides information on the curing level, also evaluated by means of the eyes. As a solvent, acetone can dissolve components that are not cured out of the coating layer. But: Better evaluation possibilities are offered by means of objective methods. The Robinson test consists of a standardized procedure and objectifies sensoric results. Additionally, the slip angle test is a good method for evaluating the curing level, as both factors are related to each other. If the coating surface is dull, a sufficient curing level cannot be expected. With the infrared spectroscopy (FTIR-analysis) you can evaluate your percental curing level. Here, not cured components of the coating layer are related to those reactive components that are generally existing in the wet coating.

Your checklist

​​​​​​​​Influence factor: UV lamps
Increase performance, clean, change if necessary

​​​​​​​​Influence factor: Reflectores
Check, clean, change if necessary

​​​​​​​​Influence factor: Printing press
Reduce speed

​​​​​​​​Influence factor: Coating
Choose suitable alternative

​​​​​​​​Influence factor: Substrate
Use alternative with low penetration potential

Troubleshooting: Insufficient UV Coating Curing

Still have open questions? Contact us and we will support you to find the best solution
